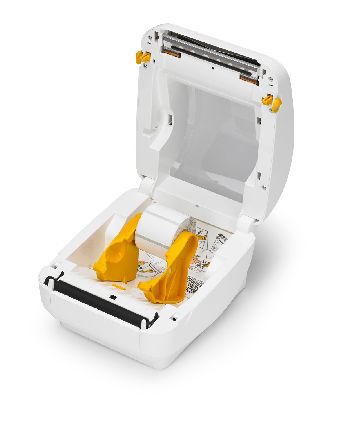

»ÃÔé¹àµÍÃì ºÒÃìâ¤é´ GK420T HC THERMAL TRANSFER DESKTOP PRINTER barcode Hospital Wristbands Outpatient Wristbands Amusement Parks Water Parks Concert & Event WristbandsBarcode PERFORMANCE DESKTOP PRINTERS àËÁÒÐÊÓËÃѺ§Ò¹ ¾ÔÁ¾ì ´éÒ¹ #Industry #Healthcare #Manufacturing #Retail #Transportation & #LogisticsUsed #High Resolution Label Printing #Light Manufacturing #Hospitality #Retail Inventory Labeling #High Resolution Label Printing #Light Manufacturing #Hospitality #Retail Inventory Labeling STANDARD FEATURES Print speed: up to 5" (127 mm) per second Disinfectant-ready plastics Medical-grade power supply More Standard Features Print method: thermal transfer Programming language: EPL and ZPL are standard Construction: dual-wall frame Tool-less printhead and platen replacement OpenACCESS™ for easy media loading Quick and easy ribbon loading Auto-calibration of media Triple connectivity: USB, Parallel, Serial ENERGY STAR® qualified Printer Specifications Resolution: 203 dpi/8 dots per mm Memory: Standard - 4 MB Flash; 8 MB SDRAM Print Width: 4.09”/104 mm Maximum Print Length: 39.0”/990 mm Maximum Print Speed: 5”/127 mm per second Media Sensors: Fixed reflective and transmissive sensors Media Characteristics Maximum Label and Liner Length: Non-continuous - 39”/990 mm Maximum Label and Liner Width: 0.75”/19 mm to 4.25”/108 mm Maximum Media Roll Size: 5”/127 mm O.D. Media Thickness: 0.003”/0.08 mm to 0.0075”/0.19 mm Media Types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands Ribbon Characteristics Outside diameter: 1.36"/35 mm Standard length: 244'/74 m Ratio: 1:1 media to roll to ribbon Width: 1.33"/33.8 mm to 43"/109.2 mm Core inner diameter: 0.5"/12.7 mm Operating Characteristics Environmental Operating temperature: 40° F/4.4° C to 105° F/41° C Storage temperature: -40° F/-40° C to 140° F/60° C Operating humidity: 10% to 90% non-condensing Storage humidity: 5% to 95% non-condensing Electrical Auto-detectable (PFC Compliant) 100-240VAV, 50-60Hz ENERGY STAR qualified IEC 60601-1 Certified Agency Approvals Emissions: FCC Part 15, Subpart B (Class B), ICES 003 Emissions and Susceptibility: EN55022 (Class B), EN55024, EN61000-3-2, EN61000-3-3 Safety: CB Scheme IEC 60950-1, TUV NRTL Physical Characteristics Width: 7.6" (194 mm) Height: 7.5" (191 mm) Depth: 10" (254 mm) Weight: 4.6 lbs (2.1 kg) Communication and Interface Capabilities RS-232 auto-sensing Serial interface, DB-9 USB V1.1, bi-directional Centronics® parallel Ethernet—10/100 internal (optional, replaces Serial and Parallel ports) ZebraLink™ Solutions: Software ZebraDesigner™ Pro ZebraDesigner ZebraNet™ Bridge Enterprise ZebraNet Utilities v7.0 ZebraDesigner Driver ZBI-Developer™ POS Driver Networking and Connectivity Ethernet—10/100 internal (optional) offered in combination with USB and Serial interface (replaces Parallel port) Firmware EPL2™ ZPL II® Web View Alert ZBI™ Fonts/Graphics/Symbologies Fonts and Character Sets 16 resident expandable ZPL II bitmap fonts One resident scaleable ZPL font Five resident expandable EPL2 fonts Native open type font support Unicode™ compliant for multi-language, on- demand thermal printing Graphic Features Supports user-defined fonts and graphics— including custom logos ZPL II drawing commands—for boxes and lines Barcode Symbologies Barcode Ratios: 2:1 (non-rotated) and 3:1 Linear Barcodes: Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (formerly RSS) 2-Dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec (For EPL and ZPL except where noted) Options and Accessories ZebraNet® 10/100 Print Server—Internal Ethernet for network communication and printing Font Packs—Asian and other international font kits ZKDU™ and KDU Plus™ keyboard display units for stand-alone printing solutions Interface cables and adapters #Êͺ¶ÒÁ¢éÍÁÙÅà¾ÔèÁàµÔÁä´é·Õè -025392650-025392657-025392906 #http://www.barcoderetail.co.th/home/index.php #mail : poscsretail@gmail.co.th #Line # ID : Line : @ucw2478b and barcodepos Facebook https://www.facebook.com/retailbarcode Youtube https://www.youtube.com/channel/UCivJPcpDN2h0fibjkZ-dSAg Google+ https://plus.google.com/u/0/+pointofsalesPOS/posts
