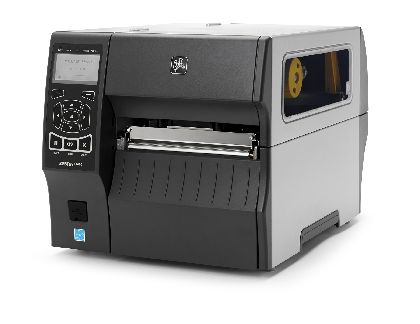

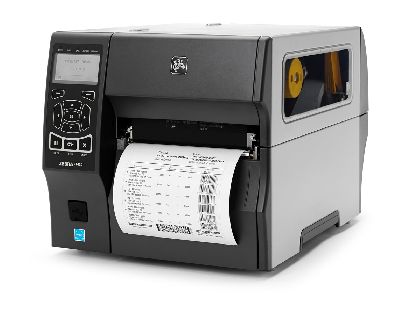

à¤Ã×èͧ¾ÔÁ¾ì ºÒÃìâ¤é´ ZT420 INDUSTRIAL PRINTER Fast and reliable, the ZT420 has a print width of 6 inches and can print up to 12 ips STANDARD FEATURES Print Methods - Thermal transfer and direct thermal printing Resolution: 203 dpi/8 dots per mm More Standard Features • Construction: Metal frame and Bi-fold metal media cover with enlarged clear viewing window • Side-loading supplies path for simplified media and ribbon loading • Element Energy Equalizer™ (E3™) for superior print quality • Communication - USB 2.0, High-Speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 2.1, USB Host • Back-lit, multiline graphic LCD display with intuitive menu and easy-to-use keypad for quick operation • Link-OS • Bi-colored status LEDs for quick printer status • ENERGY STAR® qualified Printer Specifications Resolution: • 203 dpi/8 dots per mm • 300 dpi/12 dots per mm (optional) Memory: • 256 MB RAM memory (4 MB User Available) • 512 MB Flash memory (64 MB User Available) Maximum Print Width: 6.6"/168 mm Maximum Print Speed: 12 ips/305 mm per second Media Sensors: • Dual media sensors - transmissive and reflective Media Characteristics Media web width (label and liner): • 2.00"/51 mm to 7.0"/178 mm Tear/Cutter • 2.00"/51 mm to 6.75”/171 mm Peel/Rewind Maximum Non-continuous Label Length: 39"/991 mm Minimum Label Length: • Tear-off mode: 0.5" (12.7 mm) • Peel mode: 0.5" (12.7 mm) • Rewind mode: 0.5" (12.7 mm) • Cutter: 1.00" (25.4 mm) Print Length • 203 dpi: 102"/2590 mm • 300 dpi: 45"/1143 mm Maximum media roll size: 8.0"/203 mm O.D. on a 3"/76 mm I.D. core Media thickness: 0.0023"/0.058 mm to 0.010"/0.25 mm Media types: Continuous, die-cut, notch, black-mark Ribbon Characteristics Outside diameter: 450 m: 3.2"/81.3 mm O.D. on a 1.0"/25.4 mm I.D. core Standard length: 1476′/450 m Width: 2.00"/51 mm to 6.85"/174 mm Ribbon setup: Ribbon Wound ink-side out: Ribbon wound ink-side in can be used with the optional ribbon spindle. Environmental Operating Environment: • Thermal transfer: 40º to 104ºF/5º to 40ºC • Thermal direct: 32º to 104ºF/0º to 40ºC Storage/Transportation Environment: • -40º to 140ºF/-40º to 60ºC Physical Characteristics Width: 13.25"/336.55 mm Height: 12.75"/324 mm Depth: 19.50"/495 mm Weight: 40 lb./18.14 kg barcodes/Symbologies • Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code • 2-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec Options and Accessories Communication • Parallel (Bi-directional interface) • Wireless: ZebraNet® Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option that enables the use of Webview and Alert features Media Handling • Rewind: internally rewinds a full roll of printed labels on 3” core, or peels and rewinds liner (Factory installed only) • Peel - A front mount, passive peel option • Cutter: A front mount guillotine cutter and catch tray, RFID • Supports tags compatible with UHF EPC Gen 2 V1.2/ ISO 18000-6C • Prints and encodes tags with a minimum pitch of 0.6"/16 mm • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines Keyboard Display Unit • Supports KDU Plus™ and ZKDU - Enter variable data and retrieve stored forms for standalone applications #ʹ㨵ԴµèÍä´é·Õè ºÃÔÉÑ· ºÒÃìâ¤é´ ÃÕà·Å â«ÅÙªÑè¹ «ÔÊàµçÁÊì ¨Ó¡Ñ´ http://www.barcoderetail.co.th/home/index.php â·Ã.02-5392650 â·Ã. 081-8890644 mail:poscsretail@gmail.com LINE ID :@ucw2478b LINE ID :barcodepos
