DataMan 300 Series Barcode Readers

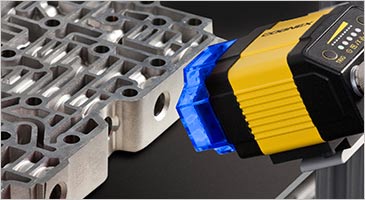

The award-winning DataMan® 300 series is the most versatile Cognex fixed-mount barcode reader offering multiple integrated lighting and lens options, an intelligent auto-tune feature, and multiple models to select from. The DataMan 300 series can handle the most difficult-to-read DPM (Direct Part Mark) codes as well as challenging 1-D barcodes and 2-D matrix codes, and is suitable for indexed or high-speed lines.

Unmatched Barcode Reading Performance
Featuring proprietary Cognex barcode reading technology, 1DMax+™ with Hotbars™ and 2DMax+, which delivers unmatched barcode reading performance of the most challenging 1-D and 2-D codes, regardless of the print method or surface.

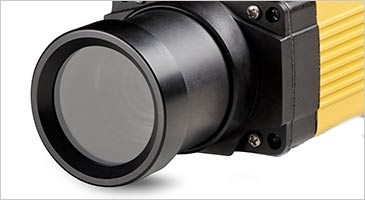

Flexible optics & lighting
Integrated and controllable modular lighting and optics enable you to choose the appropriate lens for your required working distance and field of view, including variable focus liquid lens technology. The controllable, field changeable lighting modules allow you to create the best possible lighting for your part, ensuring maximum read rates.

Specifications

DataMan 300 series is available in three base models
The DataMan 300 provides standard resolution of 800x600 pixels and the DataMan 302 is the high resolution model (1280x1024). The DataMan 302 is ideal for situations where a very small code is needed to be found within a very large field of view. DataMan 303 is equipped with the highest resolution of 1600 x 1200 pixels.

The DataMan 300 series is available in three resolutions:

• DataMan 300: 800 x 600 pixels
• DataMan 302: 1280 x 1024 pixels
• DataMan 303: 1600 x 1200 pixels
