Superior Code Reading Technology
The rugged DataMan® 8000 series of readers offers the industry's most advanced technology for reading 1-D and 2-D codes regardless of size, quality, printing method or surface, and is the only industrial handheld barcode reader that offers Industrial Ethernet communication and liquid lens technology.

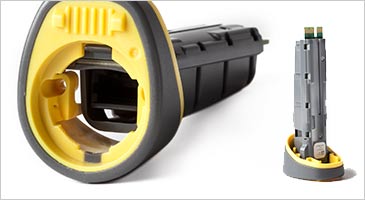

Exclusive Modular Industrial Communications
2-D Code Reading Technology
For 2-D codes, 2DMax+ technology is best-in-class for decoding 2-D matrix symbologies as adopted in many industries for direct part marking (DPM) as well as for high speed printed applications.
1DMax+ Technology with Hotbars
For 1-D barcodes, the 1DMax+ algorithm with Hotbars image-analysis technology gives DataMan 8000 series barcode readers unprecedented performance on damaged or difficult-to-read codes.
The DataMan 8000 series of industrial barcode readers is also the first handheld reader to offer Ethernet communication with Cognex Connect™ capability for easy integration into your factory network for real-time product and part traceability.
Corded and cordless barcode scanners for all applications
The DataMan® 8000 series is available in two models, each can be corded or cordless, with proprietary 1DMax+™ with Hotbars™ technology and 2DMax+™ algorithms, liquid lens technology and modular communications capabilities:
 |

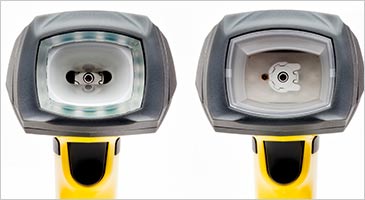

DataMan 8500. Designed to decode 2-D DPM codes with near/far integrated LED illumination. The DataMan 8500 readers incorporate Cognex’s patented UltraLight® technology for superior image formation on any mark type and surface. UltraLight illumination provides dark field, bright field and diffuse lighting all in just one electronically controlled light. | |
 |
DataMan 8100. Designed to decode well-printed 1-D and 2-D label-based codes and well-marked DPM codes. The DataMan 8100 includes all of the features of the DataMan 8500 readers as well as bright field illumination. The DataMan 8100 readers are ideal for applications that require superior code reading performance without specialty lighting |
| Dimensions | 220 mm x 155 mm x 85 mm |
| Weight | 326 g |
| Operating Temperature | 0ºC to 40ºC (32ºF to 104ºF) |
| Storage Temperature | -40ºC to 60ºC (-40ºF to 140ºF) |
| Maximum Humidity | 95% (non-condensing) |
| Material | Polycarbonate housing with overmold |
| Drop Resistance | 50 drops from 2 m |
| Imager | 1280 x 1024 High Resolution Sensor |
| Aiming | Laser Aimer, Class 2 |
| Status Outputs | LED, Beeper and Vibration |
| Communications | Serial Module: RS-232 , USB, PS/2 Ethernet Module: EtherNet/IP, PROFINET, MC Protocol, ModbusTCP,TCP/IP, FTP Intelligent Base Station: RS-232, USB, Ethernet (TCP/IP, FTP) (Point-to-Point Wireless: 802.11 b/g Channels 1-11) |
| Symbologies | 1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, Pharmacode, POSTNET, PLANET Code, GS1 Databar, PDF417, Micro PDF417, IMB, Postal 2-D: Data Matrix, QR, MicroQR |
| Lighting | DataMan 8500: UltraLight integrated bright field, dark field, diffuse illumination DataMan 8100: Integrated bright field illumination |
| Optics | Variable focus liquid lens (0 to over 500 mm depending on code element size) |
| Power Supply Requirements | DataMan 8100 with Serial/USB: 5V - 6V DC, 2.5W maximum LPS or NEC Class 2 power supply; DataMan 8500 with Serial/USB: 5V - 6V DC, 5.0W maximum LPS or NEC Class 2 power supply; DataMan 8100/8500 with Ethernet: PoE Class 2 power supply; Intelligent Base Station: 24V or PoE Class 3 power supply |
| Environmental | Compliant with RoHS directive 2002/98/EEC |
| Regulatory | Electrical: CE, CSA, UL 60950, EN/IEC 60950-1 EMI/RFI: FCC Part 15, CE, EN55022, EN55024, ICES-003, AS/NZS CISPR 22, JapanVCCI, MIC |
| Data Validation | US DoD UID Guidelines, GS1, ISO15434, ISO15418 |
| Operating System | Microsoft® Windows® XP and Windows 7 |
