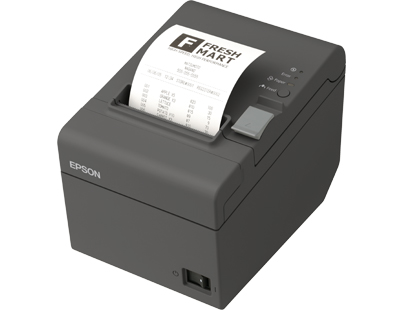

à¤Ã×èͧ¾ÔÁ¾ìãºàÊÃç¨ÍÂèÒ§ÂèÍ Epson TM-T82 Í͡ẺãËéµÔ´µÑé§ä´é§èÒ ÊдǡµèÍ¡ÒÃãªé§Ò¹áÅСÒúÓÃاÃÑ¡É Details MODEL NUMBER TM-T82 Printing Method Thermal Line Printing Print Font Font 9 × 17 / 12 × 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24 Column Capacity Standard Paper Width 80mm 0.88 × 2.13 mm / 1.25 × 3 mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mm Paper Width 58mm 35 / 46, Hanji font: 17, Thai font: 35 / 46 Column Capacity 42 Column Mode Paper Width 80mm 42 / 60, Hanji font: 21, Thai font: 42 / 60 Paper Width 58mm 42 / 31, Hanji font: 15, Thai font: 42 / 31 Character Size (W x H) 0.88 x 2.13mm / 1.25 x 3mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mm Character Set 95 Alphanumeric, 18 set International, 128 × 43 pages (including user-defined page) Hanzi: Simplified Chinese: GB18030-2000: 28,553 Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology Characters Per Inch 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi Interface Built-in USB + UIB (Serial or Parallel interface), Ethernet interface Receive Data Buffer 4KB or 45 bytes Print Speed Max 150mm/s Dot Density 203 x 203 dpi Paper Roll Paper Width and Roll Diameter 79.5 ± 0.5 (W) × dia. 83.0 57.5 ± 0.5 (W) × dia. 83.0 Power Supply Voltage DC + 24V ± 7% Power Consumption Operating Approx. 1.8A (Mean / Print ratio 18% with print pattern) Standby Approx. 0.1A (Mean) Power Supply External power supply (Model: PS-180) Reliability Printer Mechanism Life 15 million lines Auto Cutter Life 1.5 million cuts MTBF 360,000 hours MCBF 60,000,000 lines Overall Dimensions (D x W x H) 199 x 140 x 146 mm Mass Approx. 1.7kg EMI and Safety Standards Oceania EMI AS/NZS CSPR22 Class A Option External buzzer unit Standard Accessories ROM Roll paper x 1 roll (for checking the initial movement of the printer), CD-ROM (Drivers,Utility Software, Manuals), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply (Model:PS-180) Installation Horizontally / Vertically / Vertically with wall hanging bracket / wall hanging
