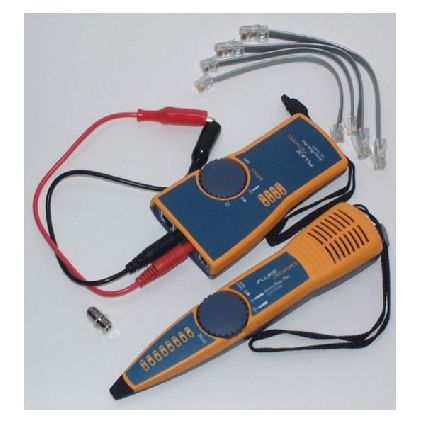

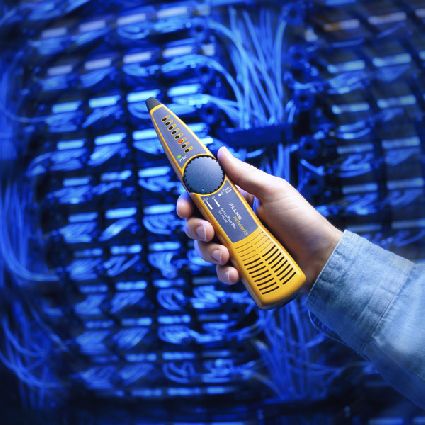

â·ÃÊͺ¶ÒÁÃÒ¤Ò Fluke Networks MT-8200-60A Intellitone Pro 200 Tone & Probe Kit -- The Fluke Networks MT-8200-60A IntelliTone Pro 200 Kit gives cutting-edge digital and analog cable locating technologies that are advanced as the systems you work with. à¤Ã×èͧÇÑ´ÊÒÂÊÑ­­Ò³ MT-8200-60A Fluke Networks MT-8200-60A Intellitone PRO 200 Toner and Probe Kit General specifications Operating temperature 32 °F to 104 °F (0 oC to 40 oC) Storage temperature -4 °F to +140 °F (-20 oC to +60 oC) Operating relative humidity (% RH without condensation) 95 % (50 °F to 95 °F; 10 oC to 35 oC) 75 % (95 °F to 104 °F; 35 oC to 40 oC) Uncontrolled < 50 °F (< 10 oC) Vibration Random, 2 g, 5 Hz-500 Hz Shock 1 m drop test with and without module Safety EN 61010-1 1st Edition + Amendments 1, 2 Altitude 3000 m EMC EN 61326-1 Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical Applications Copper cabling media, including shielded (STP) and UTP cable; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. POTS telecom service. Legacy tone Create and detect 1000 Hz compatible tone Toner Specifications Dimensions 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) Display LED Control Thumbwheel switch Toner interface Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring Toner frequency IntelliTone signal: encoded digital signal Talk battery voltage 6V into 600Ω Ouptut power 5 V p-p Voltage protection 100V Auto power down Turns off automatically after 2 1/2 hours of inactivity Auto power down Turns off automatically after 2 1/2 hours of inactivity Probe Specifications Dimensions 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm) Display (8) LED indicators, Synch LED indicator Audio Microprocessor controlled audio files Control Thumbwheel switch, volume control wheel Tone detection Detects IntelliTone digital signal and 1 kHz signal from analog toners. Toner interface Main Mod8 port for cablemap on all 4 pairs of UTP / STP cabling. Auto power down Turns off automatically after 1 hour of inactivity Cable Tester Fluke Micromapper MT-8200-60A à¤Ã×èͧ·´ÊͺÊÒÂÊÑ­­Ò³
