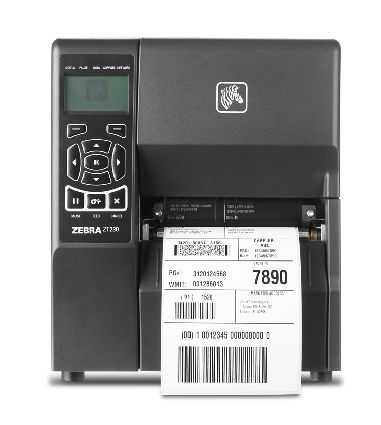

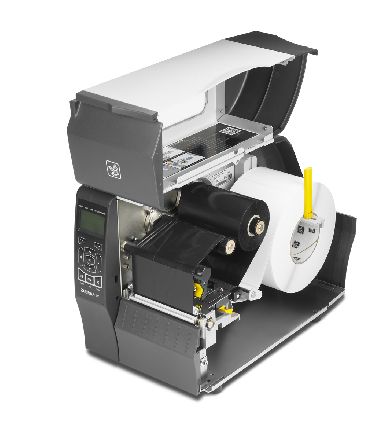

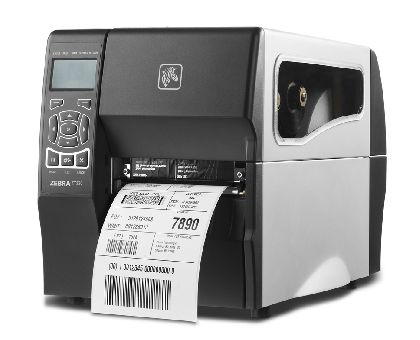

à¤Ã×èͧ¾ÔÁ¾ìºÒÃìâ¤é´ Zebra ZT230 Industrial Printer durability of a metal frame and cover with an ic ZT230 Industrial Printer The durability of a metal frame and cover with an icon based LCD graphical user interface and larger ribbon capacity for long lasting use in demanding environments. Industry Government Healthcare Manufacturing Consumer Goods Transportation & Logistics Used For: •Asset Management •Cross Docking •Inventory Management •Lab Sample Tracking •Receiving/Shipping •Reverse Logistics •Work-in-Process Tracking •Compliance Labeling •Information Labels •Medical Record Labeling •Order Labeling •Prescription Labeling •Quality Control Standard Features Print Methods: Direct thermal and Thermal Transfer (optional) Resolution: 203 dpi More Standard Features Element Energy Equalizer™ (E3®) for superior print quality USB 2.0 and RS-232 serial ports Dual media sensors - transmissive and reflective sensing technology, selectable through software or front panel Media supply hanger designed for 1" (25mm) through 3" (76mm) core diameters Side loading metal print mechanism with head open lock Link-OS™ environment capable Printer Specifications Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Memory: 128MB Flash, 128MB RAM Print width: 4.09"/104 mm Print length: 203 dpi: 157"/3,988 mm and 300dpi: 73"/1854 mm (optional) Print speed: 203 dpi: 6" (152 mm)/sec 300 dpi: 6" (152 mm)/sec Media sensors Reflective, Transmissive Media Characteristics Maximum label and liner width: 4.50"/114 mm Minimum label and liner width: 0.75" (19.4 mm) Maximum non-continuous label length: 39"/991 mm Maximum Media Roll Size: 8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core 6.0" (152 mm) O.D. on a 1" (25 mm) I.D. core Media thickness: 0.003"/0.076 mm to 0.010"/0.25 mm Media types: continuous, die-cut, notch, black mark Ribbon Characteristics Outside diameter: 300m = 2.7"/68.6 mm; 450m = 3.2"/81.3 mm Standard length: 984'/300 m or 1476'/450 m Ribbon width: 1.57"/40 mm to 4.33"/110 mm Ribbon setup: Ribbon wound ink-side out ID Core: 1.0" (25.4 mm) Operating Characteristics Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C) Thermal transfer DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 20% to 85% non-condensing Storage humidity: 5% to 85% non-condensing Energy Star certified universal auto-ranging (PFC-compliant) power supply 100-240VAC; 47-63 HZ. Not 90–265VAC; 48–62Hz Agency approvals IEC 60950 EN 55022 Class B EN55024 EN 61000-3-2 EN 61000-3-3 Physical Characteristics Width: 9.5"/242 mm Height: 10.9" (277 mm) Depth: 17" (432 mm) Weight: 20 lbs (9.1 kg) Shipping weight: 25 lbs (11.4 kg) Related Products Options Factory Installed Printer Options Thermal Transfer Core-to-Core Ribbon Handling System Print head 300 dpi (12 dots/mm) A front mount, passive peel option, w/ no take-up spindle A front mount guillotine cutter Liner Take-Up for ZT230 only, rewinds entire 8" roll of liner (includes peel option) Field Installed Printer Options Additional scalable and smooth bitmapped fonts available Print head 300 dpi (12 dots/mm) A front mount, passive peeler A front mount guillotine cutter Internal parallel port option ZebraNet 10/100 Print Server – supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features. ZebraNet n Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option Real Time Clock (RTC) –date/time for standalone applications Keyboard Display Unit (KDU) option – Enter variable data and retrieve stored forms for standalone applications (requires null modem adapter with DB9 serial cable). Communication and Interface Capabilities Internal parallel port option ZebraNet® 10/100 Print Server – supports 10/100 Ethernet networks internally integrated option that enables the use of ZebraLink Webview and Alert features. ZebraNet® n Printer Server – supports 802.11 a/b/g/n networks via an internally integrated option. Programming Languages Core programming languages: ZPL I/ZPL II Bar Codes/Symbologies Bar code modulus "X" dimension: - Picket fence (non-rotated) orientation: 203 dpi = 4.9 mil to 49 mil 300 dpi = 3.3 mil to 33 mil - Ladder (rotated) orientation: 203 dpi = 4.9 mil to 49 mil 300 dpi = 3.9 mil to 39 mil Bar code ratios – 2:1, 7:3, 5:2, & 3:1 Linear bar codes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2-dimensional bar codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec Fonts and Graphics Fonts A, B, C, D, E, F, G, H, and GS are expandable up to 10 times, height and width independently. However, fonts E and H (OCR-A and OCR-B) are not considered ―in-spec" when expanded. The scalable smooth font 0 (CG Triumvirate™ Bold Condensed) is expandable on a dot-by-dot basis, height and width independent, while maintaining smooth edges. Maximum character size depends on available memory. IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G, and 0 through software control.
