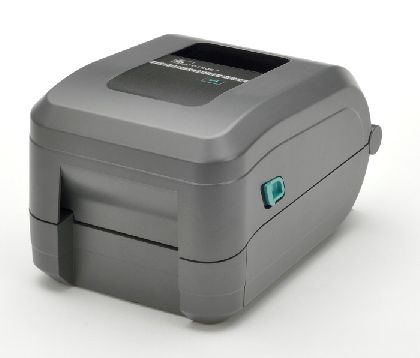

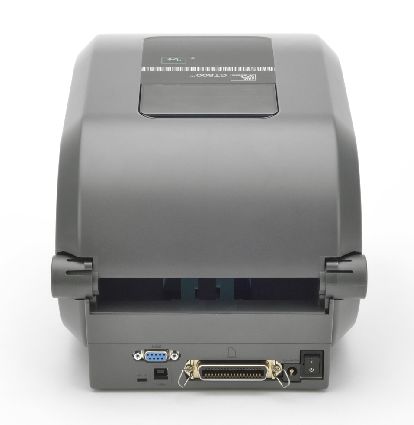

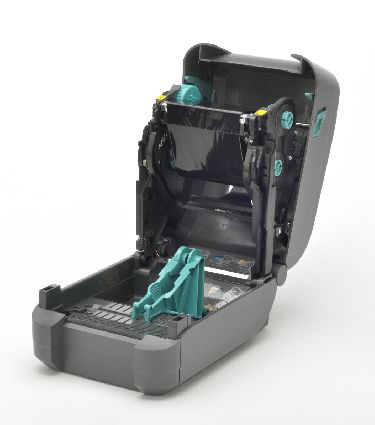

ºÒÃìâ¤é´ »ÃÔé¹àµÍÃì GT800-203 dpi(8 dots/mm)Width 4.09" (104 mm) maximum Speed 5" (127 mm)/sec Zebra® GT800™ Desktop Printer standard Features • 300 meter ribbon capacity •32 bit RISC processor •Co-resident EPL2 and ZPL II programming languages •Triple connectivity: Serial, USB and parallel •Print methods: Thermal transfer and direct thermal modes; printing of bar codes, text and graphics. •OpenACCESS™ for easy media and ribbon loading •Microsoft ®Windows ®drivers Providing enhanced performance and reliability at a competitive price, the GT800 direct thermal/thermal transfer desktop printer offers a wide range of advanced features to meet a variety of low- to medium-volume printing applications. Improve productivity with the 300 meter ribbon that requires fewer changes; fast, 127 mm per second print speed; powerful 32-bit processor for fast label throughput; and a large memory that supports more graphics and longer labels. Built with Zebra quality and durability, the GT800 is easy to integrate with a choice of three connectivity interfaces and optional 10/100 Ethernet, and with co-resident EPL™ and powerful ZPL® programming languages for compatibility with all Zebra printers. Benefits 300 meter ribbon capacity for increased productivity Enhanced performance and speed Supports wider media widths – up to 114 mm Built for ease-of-use and durability Ideal For Manufacturing – light industrial work-in-process, product and shipping labeling Transportation & logistics – boarding tickets, bag tags, parking passes Government – asset management, documents management, evidence tracking Healthcare – laboratory specimen and blood bank labeling Retail – price labeling and receipt printing Service & Support Online Tech Support Phone Tech Support Service Contracts Standard Features 300 meter ribbon capacity Print method: direct thermal/thermal transfer Print speed: up to 5" (127 mm) per second EPL and ZPL programming languages standard 32 bit RISC processor Quick and easy ribbon loading system Construction: ABS double-walled casing OpenACCESS™ design Printer Specifications Resolution 203 dpi (8 dots/mm) Memory Standard: 8 MB SDRAM; 8 MB Flash Print width 4.09" (104 mm) maximum Print length 39” (991 mm) Print speed 5" (127 mm)/sec Media sensors Reflective Transmissive Media Characteristics Maximum label and liner width 4.49" (114 mm) Minimum label and liner width .75" (19.5 mm) Maximum label and liner length 39" (991 mm) Maximum roll diameter 5" (127 mm) Core diameter .4375" (11.11 mm) and 1.5" (38 mm) Media thickness 0.003" (.08 mm) to 0.007" (0.18 mm) Media types tag stock, Roll or fanfold Ribbon Characteristics Outside diameter 2.6" (66 mm) 300 meter ribbon Standard length 984' (300 meter) Ratio 1:4 (ribbon roll to media roll) Ribbon width Recommended to be at least as wide as media 1.33" (33.8 mm) to 4.3" (110 mm) ID Core 1.0" (25.4 mm) Operating Characteristics Operating temperature TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal Storage temperatures -40° F (-40° C) to 140° F (60° C) Operating humidity 10-90% non-condensing R.H. Storage humidity 5-95% non-condensing R.H. Electrical Auto-detecting (PFC compliant) 100-240 VAC, 50-60 Hz Agency approvals TUV-R NRTL TUV-R CB NOM KCC CE FCC Class-B Physical Characteristics Width 7.75" (197 mm) Height 7.25" (197 mm) Depth 10.75" (273 mm) Weight 10.98 lbs (5 kg) Related Products Options Dispenser with label taken sensor 10/100 internal Ethernet connectivity Communication and Interface Capabilities Serial RS-232 (DB9) Parallel (Centronics) USB 10/100 Internal Ethernet (optional) Programming Languages Core programming languages EPL2, ZPL I/ZPL II Bar Codes/Symbologies Linear Codabar Code 11 Code 128 Code 39 Code 93 EAN-13 EAN-18 EAN-14 German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet ISBT-128 Logmars MSI Plessey Postnet Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E RSS (reduced space symbology) 2-dimensional RSS / GS1 DataBar family (12 barcodes) Codablock Code 49 Data Matrix MaxiCode QR Code PDF417 Aztec MicroPDF417 Fonts and Graphics 16 resident expandable ZPL fonts One resident scalable ZPL font 5 resident expandable EPL2 fonts Supports user-defined fonts and graphics — including custom logos
