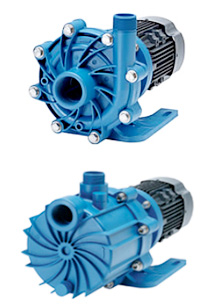

จำหน่ายปั๊มขับเคลื่อนด้วยแม่เหล็ก Magnetic Drive Pump
ตัวแทนจำหน่ายปั๊มขับเคลื่อนด้วยแม่เหล็ก ยี่ห้อ Finish Thompson Inc. สำหรับสูบจ่ายของไหลทุกชนิด ทนต่อการกัดกร่อนของสารเคมีทุกขนิด
Magnetic Drive Pump, Sealless Pump, Plastic Pump, Self Priming Pump
Non Metallic Magnetic Drive, End-Suction
Non Metallic Magnetic Drive, Self-Priming
ETFE-Lined Metallic Magnetic Drive
316 Stainless Steel with Mechanical Seal
Advantages :
- บำรุงรักษาและถอดประกอบง่าย ไม่จำเป็นต้องใช้เครื่องมือพิเศษใดๆ
- ปั๊มไม่มีการรั่ว 100% เพราะเป็นแบบไม่มี Mechanical Seal
- มีชุด O-ring ป้องกันการรั่วของสารเคมี ที่มากัดกร่อนแม่เหล็กภายนอกและมอเตอร์
- ชิ้นส่วนภายในทุกชิ้นถอดแยกออกจากกันได้
- ไม่จำเป็นต้องเปลี่ยนทั้งชุดเมื่อเกิดความเสียหาย
- สามารถดูดของเหลวที่ขาดูดที่ความลึกต่ำสุด 7.6 เมตร (Self-Priming Pump)
- สามารถ Run Dry ได้นานกว่าชั่วโมง (Carbon Bushing Model)
Specifications :
Construction Material : Glass-filled Polypropylene, Carbon-filled PVDF, 316 SS
and ETFE Lined Ductile Iron
Capacity : Flow Rate up to 60 m3/hr, Discharge Head up to 70 meters
Installation Type : Horizontal and Vertical
Connections : BSP, NPT, Union and ANSI Flanged
Media : Water to Very Corrosive Fluids (Acids, Bases, Solvents)
Up to 1.8 Specific Gravity
Ambient to 220?F (104?C) Temperature
Up to 100% Concentrations
Up to 5% Solids
Up to 200 Centipoise (Centrifugals)
Aplications :
Chemical Manufacturing and Distribution
Bleach Transfer to Tanker Truck
Water and Waste Water Treatment
Bleach Transfer to Day Tanks
Print Circuit Board Manufacturing
Oil and Gas Industry
Food and Beverage Industry
Pulp and Paper Mills
